Architectural acoustic seals

We are pleased to offer a range of acoustic seals, widely used in the manufacture and installation of architectural door assemblies.

Note: For effective acoustic performance, a door assembly must be comprehensively sealed around the entire perimeter, including the threshold. Products offered by Millmerran have been specially selected to harmoniously combine the essential “Drop-down” seal at the threshold with high performance options around the rest of the perimeter.

Threshold seals

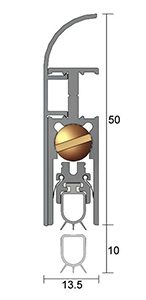

“Integrity” brand – Heavy duty, face-fixed, automatic drop-down seals – Ref IS 8036si
Standard – Satin anodized silver finish Features
IS 8036si x 735mm

IS 8036si x 835mm

IS 8036si x 935mm

IS 8036si x 1035mm

8036si Will seal a gap of up to 15mm. Easily fitted to the bottom of the door leaf with just two screws [Supplied]
Available in various lengths for cutting down to suit all normal door sizes.
Comprehensive fitting instructions with each pack.
Premium – Powder coated with embedded durable decorative finishes

IS 8036si x 735mm

IS 8036si x 835mm

IS 8036si x 935mm

IS 8036si x 1035mm

 Woodgrain selection Features as above

Available in attractive woodgrains such as Oak, Ash, Maple, Beech, Cherry, etc, and also brushed stainless steel or polished brass

Perimeter seals

“Integrity” brand – Heavy duty, stop-fixed perimeter seals – Ref IS 7020si
Standard – Satin anodized silver finish Features
IS 7020si x 1000mm

IS 7020si x 2250mm

IS7020 x-section Will seal a gap of up to 5mm. Easily fitted to the stop of the door frame with screws [Supplied] and adjustable for precise sealing effectiveness.
Comprehensive fitting instructions with each pack.
Premium – Powder coated with embedded durable decorative finishes

IS 7020si x 1000mm

IS 7020si x 2250mm

Woodgrain selection Features as above

Available in attractive woodgrains such as Oak, Ash, Maple, Beech, Cherry, etc, and also brushed stainless steel or polished brass

Mann-McGowan – Frame-fixed perimeter seals – Ref ACS-1
Features
ACS-1 x 1000mm

ACS-1 x 2100mm

MMcG - ACS1



Dimensions 11mm x 11mm for unobtrusive application to a 12mm door-stop

For self-adhesive fixing around the perimeter of a door frame. Optimum acoustic sealing capability. Will seal a gap between door leaf and frame of up to 5mm.

Comprehensive fitting instructions with each pack.

Millmerran – Frame-fixed perimeter seals – Hybrid silicone / polyurethane rubber on rigid spine
Features
Profile A  asc-profile-a

6mm bulb with push-fit tailpiece to fit in 3mm kerf

Outstanding resilience and durability.

Rigid spine enables exceptional ease of fitting and prevents stretch / subsequent shrinkage.

Will seal a gap of up to 5mm.

Comprehensive fitting instructions with each pack.

Profile B  asc-profile-b

6mm bulb with offset push-fit tailpiece to fit in 3mm kerf

Profile C  asc-profile-c

Pentagon 7mm x 4mm bulb with push-fit tailpiece to fit in 3mm kerf

Profile D  asc-profile-d

Cushion seal – 10mm x 7mm bulb with push-fit tailpiece to fit in 3mm kerf
